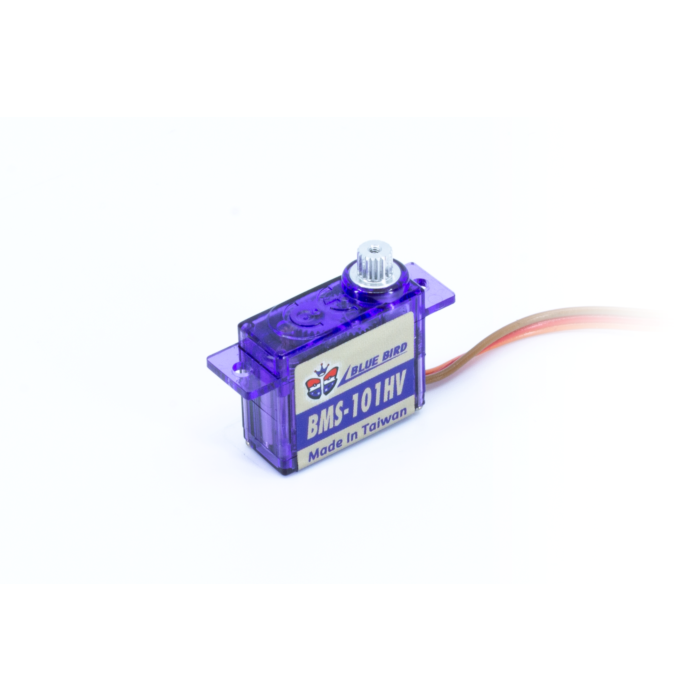

Blue Bird BMS-101HV
€22,99
Verfügbar bei Nachlieferung
- Applications: 3D Airplane / DLG / HLG / F3K / F3P
- Operating Voltage Range: 6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 25 Li-Fe )
- Application / Suitable: 3D EP Aircraft, DLG / HLG / F3K / F3P.
- Type: Micro Servo
- Control System Digital Controller: 12-Bits ( 4096 Steps ) / Frequency：333Hz / Neutral：1520us
- Dead Band Width: 0.002ms ( 2us )
- Frame Rate (Signal repeat rate): 3ms ( Maximum ) [ e.g., Futaba-4PX / Sanwa-M12 ]
- Rotating Direction: Clockwise / Pulse Traveling 1500 ~ 1900u sec
- Operating Travel: 90° ( When 1100 ~ 1900 μ sec )
- Ball Bearing: N/A
- Gear: All Precision Metal Gears
- Motor: Metal-Brush Coreless Motor
- Horn / Gear Spline: 19 Teeth
- Connected Cable Length :150 mm ( 5.9 in )
- Connected Housing: Universal Connector ( J-Type )
- Dimension (mm): 18.6 x 7.6 x 15.7 mm / 0.73 x 0.3 x 0.62 in
- Weight (gram): 4.4 ± 0.5 grams / 0.15 oz
- Torque At 6.0V: 0.9 kg-cm / 12.5 oz-in
- Torque At 7.4V: 1.1 kg-cm / 15.3 oz-in
- Speed At 6.0V: 0.08 sec / 60°
- Speed At 7.4V: 0.06 sec / 60°
- Idle Current: 2 mAh @ 6.0~7.4V Stopped
| Gewicht | 0,4 kg |
|---|
