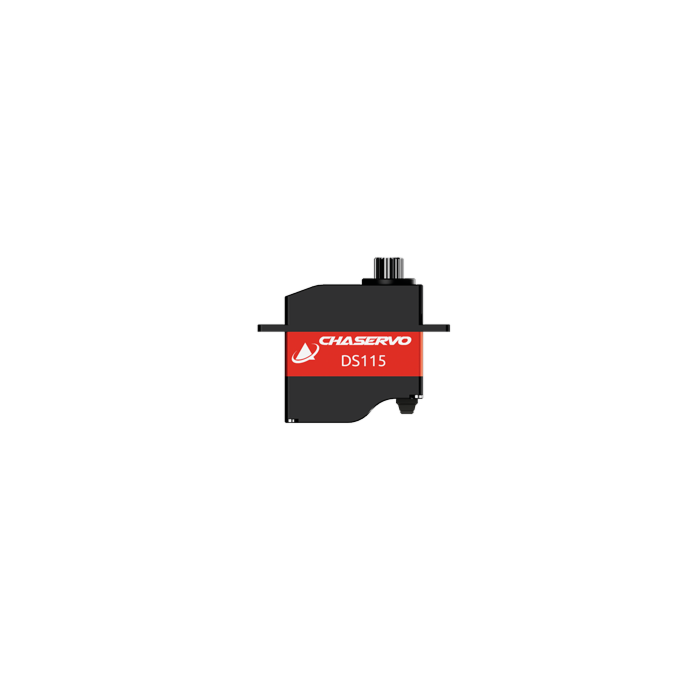

Chaservo DS115 Servo HV (6,0kg / 0,08s @ 8,4V)
€29,90
1 vorrätig (kann nachbestellt werden)
- Dimensions 23 x 11.5 x 24.5 mm
- Weight 15 g
- Rated voltage DC 7.4V
- Voltage range DC 4.0 – 9.0V
- Holding Torque @ 3.5V 3.6 kg-cm / @ 6.0V 5.5 kg-cm / @ 8.4V 6.0 kg-cm
- Speed: 0.13sec/60° @ 4.8 V / 0.09sec/60° @ 7.4 V / 0.08sec/60° @ 8.4 V
- Toothing 25T, 5 mm
- Position sensor Potentiometer
- Motor Coreless DC
- Ball Bearing 2 x Ball Bearing
- Operating frequency 1520µs / 333Hz
- Pulse width 900µs – 2100µs
- Programmable Yes
- Metal Gear
| Gewicht | 0,3 kg |
|---|
