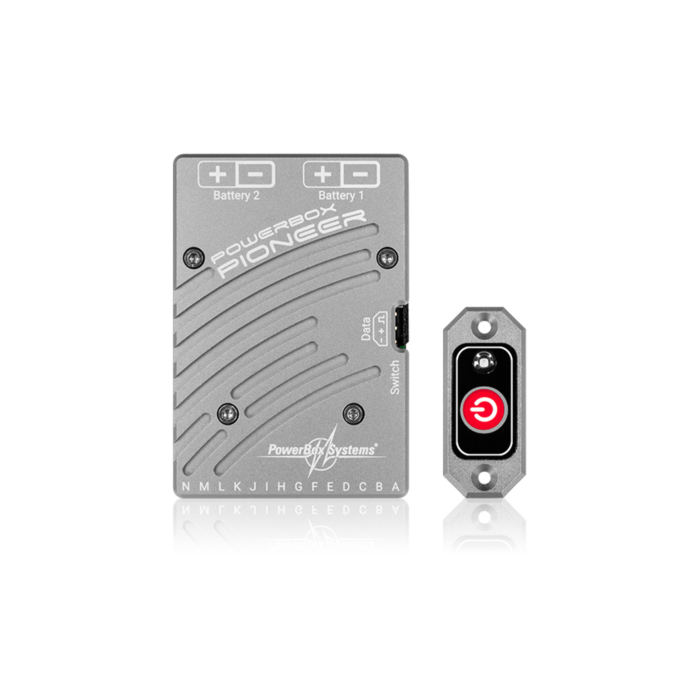

Powerbox Pioneer (Microswitch)

In performance terms the compact Pioneer concedes nothing to the larger backers. Many series of tests have been carried out with a 40A load for several minutes, and we guarantee a continuous current capacity of 20A. The elegant aluminium heat-sink ensures the necessary heat dissipation, and even the external switch is supplied in a top-quality anodised aluminium case, machined from solid.

Features

• 14 channels
• High-performance battery backer with high continuous load capacity
• Duplicated circuitry for the entire power electronics
• Redundant electronic switch
• All features can be controlled using PowerBox and Jeti transmitters
• All systems can be operated using BlueCom or PowerBox USB
• Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
• Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
• Special regulatory algorithm for fixed-wing models
• Detects all transmitter mixers
• Ultra-simple gyro programming in just a few minutes
• Optional GPS mode for speed-dependent gyro compensation
• Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
• Transmission of voltage, current, capacity, lost frames and holds
• User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
• Suppression of servo feedback currents
• Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
• Efficient heat dissipation via the high-quality machined and anodised aluminium case
• Machined and anodised aluminium switch housing
• Space-saving low-profile format
• Ultra-lightweight construction

• Operating voltage: 4.0 V – 9.0 V
• Power supply: 2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH
• Current drain Power-on state: 105 mA
• Current drain Standby: 30 µA
• Maximum load current Continuous: 2×10 A (<30 s 2x 20 A)
• Drop-out voltage: 0.3 V
• Output voltage: unregulated
• Signal input: serial
• Supported RC systems: PowerBox, Futaba, Jeti and Spektrum
• Receiver redundancy: SRS
• Channels: 26
• Servo sockets: 14
• Servo signal resolution: 0,5 µs
• Signal frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
• Gyro regulation : Heading- and Normalmode
• Gyro sensor type: external iGyro SAT
• Number of sensor axes: 9
• Supported telemetry systems: P²BUS, S.BUS2, EX-Tele, SRXL2
• Dimensions: 63 x 44 x 12 mm
• Weight: 40 g
• Weight Sensor Switch: 6 g
• Temperature range: -30 °C to +75 °C
