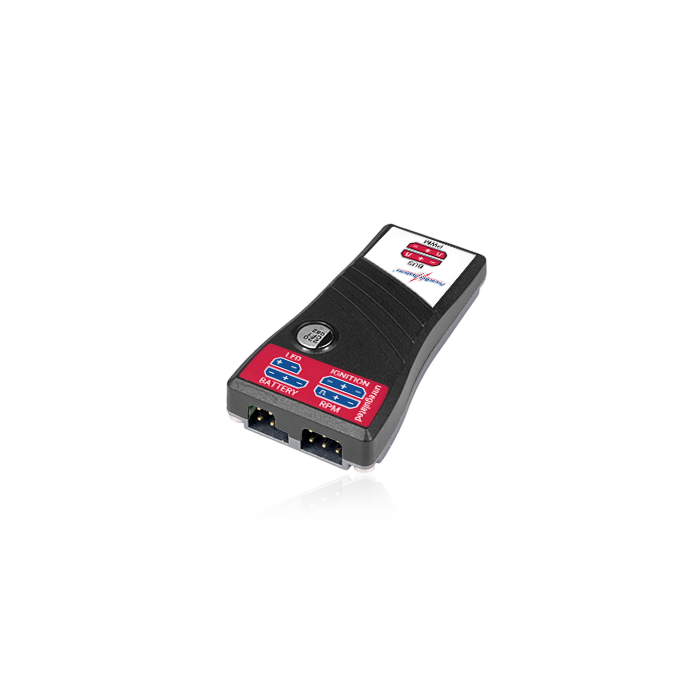

Sparkswitch RS, unregulated output
€69,00
- Optical separation between the receiving system and the ignition system
- External LED switch status indicator
- Regulated (6.0V) or pass-through output voltage
- RPM monitor for all current telemetry systems
- Telemetry function for PowerBox, Jeti, Futaba, Graupner, Multiplex, Spektrum, JR
- Failsafe mode
- Machined aluminium heat-sink
- Compact, low-profile format
- Operating voltage : 4.0V – 9.0V
- Current drain Power-on state : 19mA
- Current drain Standby : 0.2μA
- Maximum load current : max. 2A
- Output voltage : 6,0V / unregulated
- Signal input : PWM
- Dimensions : 56 x 29 x 10 mm
- Weight : 15 g
- Temperature range : -30°C to +105°C
| Gewicht | 0,4 kg |
|---|
